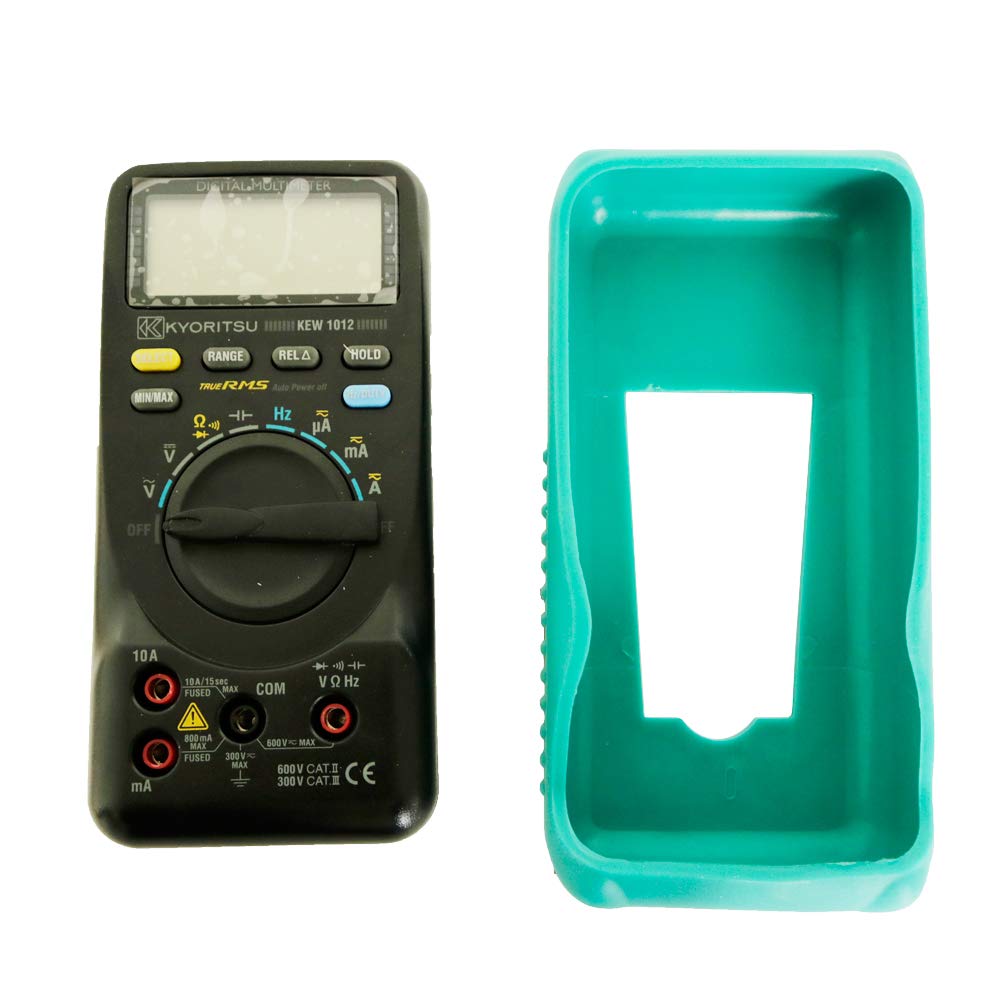

Kyoritsu 1012 Digital Multimeter with True RMS AC/DC Voltage Current Meter KEW1012

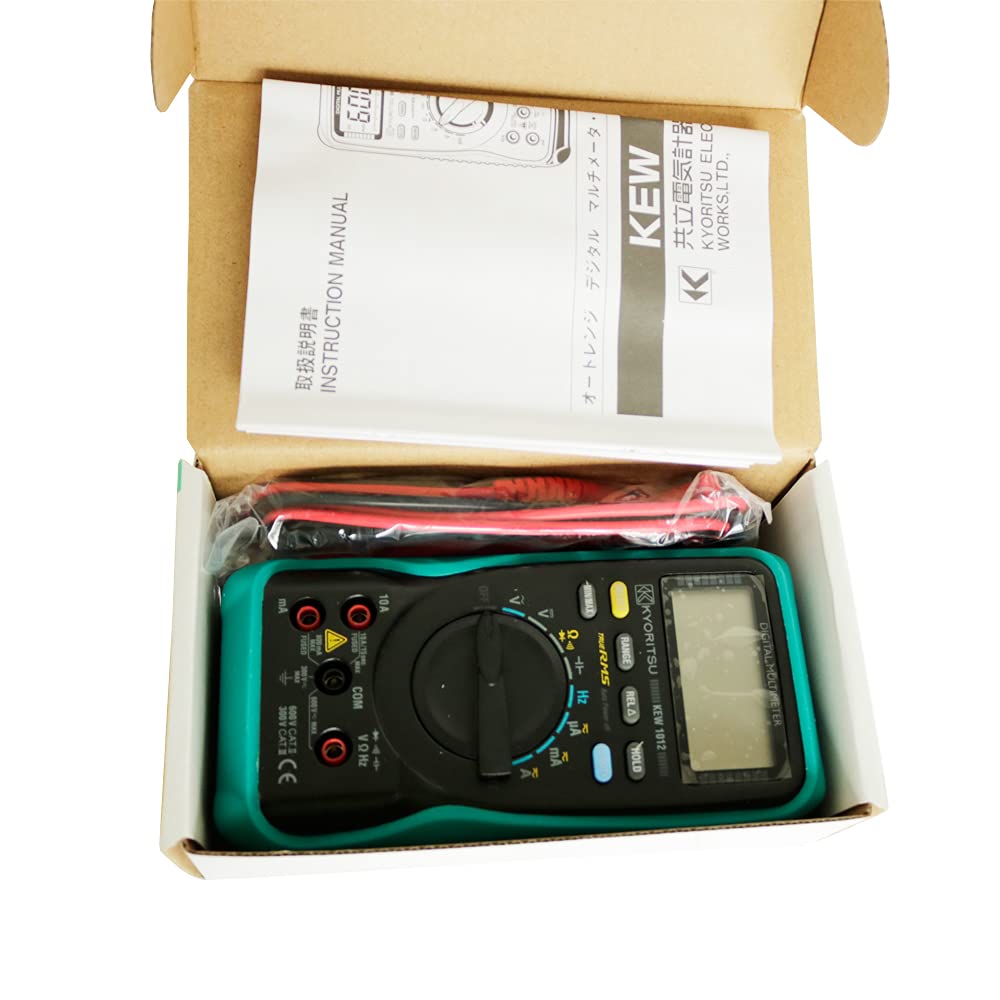

DC V：600.0mV/6.000/60.00/600.0/600V(Input Impedance: 10MΩ, 100MΩ only 600mV) ±0.5%±2dgt (600.0mV/6.000/60.00/600.0V) ±0.8%±3dgt (600V)AC V：6.000/60.00/600.0/600V(Input Impedance: 10MΩ) ±1.5%±5dgt(6.000V) ±1.2%±3dgt (60.00/600.0V) ±1.5%±5dgt (600V)DC A：600/6000µA/60/600mA/6/10A ±1.2%±3dgt (600/6000µA/60/600mA) ±2.0%±5dgt (6/10A)AC A:600/6000µA/60/600mA/6/10A ±1.5%±4dgt (600/6000µA/60/600mA) ±2.2%±5dgt (6/10A)Ω:600Ω/6/60/600kΩ/6/60MΩ ±1.0%±2dgt(600Ω/6/60/600kΩ/6MΩ) ±2.0%±3dgt (60MΩ)Continuity buzzer:0 - 600Ω (Buzzer sounds below 100Ω)Capacitance:40/400nF/4/40/400/4000µFFrequency:10/100/1000Hz/10/100/1000kHz/10MHzDUTY:0.1 - 99.9% (Pulse width/Pulse period) ±2.0%±2dgt (- 10kHz)Applicable standards:IEC 61010-1 CAT III 300V Pollution degree 2IEC 61010-1 CAT II 600V Pollution degree 2IEC 61010-031IEC 61326Display:6040 CountsPower source:R6 (1.5V) × 2 (Auto-power-OFF within 15 minutes)Dimensions:161(L) × 82(W) × 50(D)mmWeight:Approx. 280gIncluded Accessories:7066A (Test leads)0.8A/600V (Ceramic Fuse) × 1built-in10A/600V (Ceramic Fuse) × 1built-inR6 × 2Instruction Manual

• True RMS can measure and indicate distorted waveforms
• 6040 counts with Bar Graph display
• MIN/MAX function enables to record min & max value
• REL(relative value) function to indicate the measurement variation
• Diode test:2.8V Release Voltage:Approx. 0.4mA Test Current
