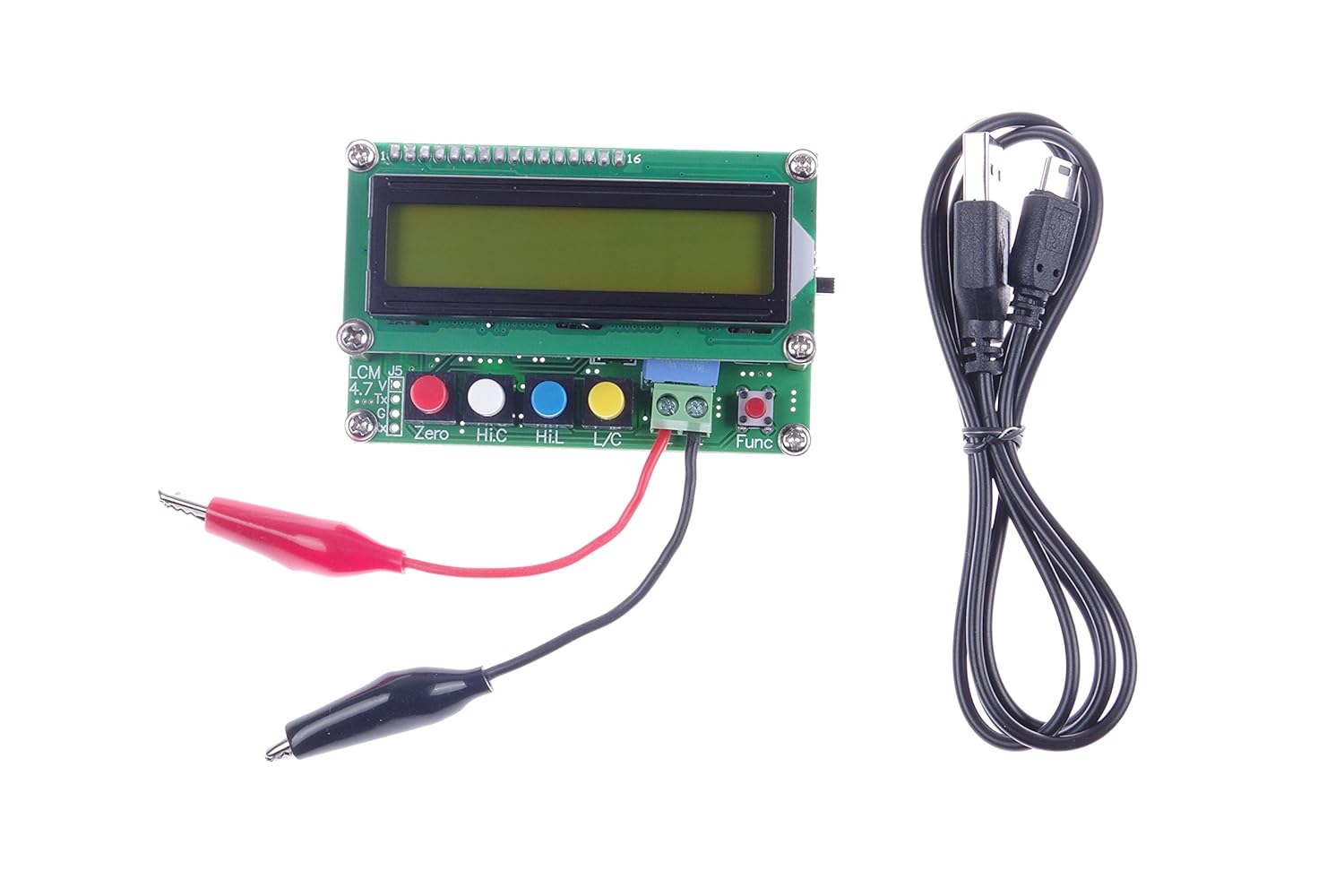

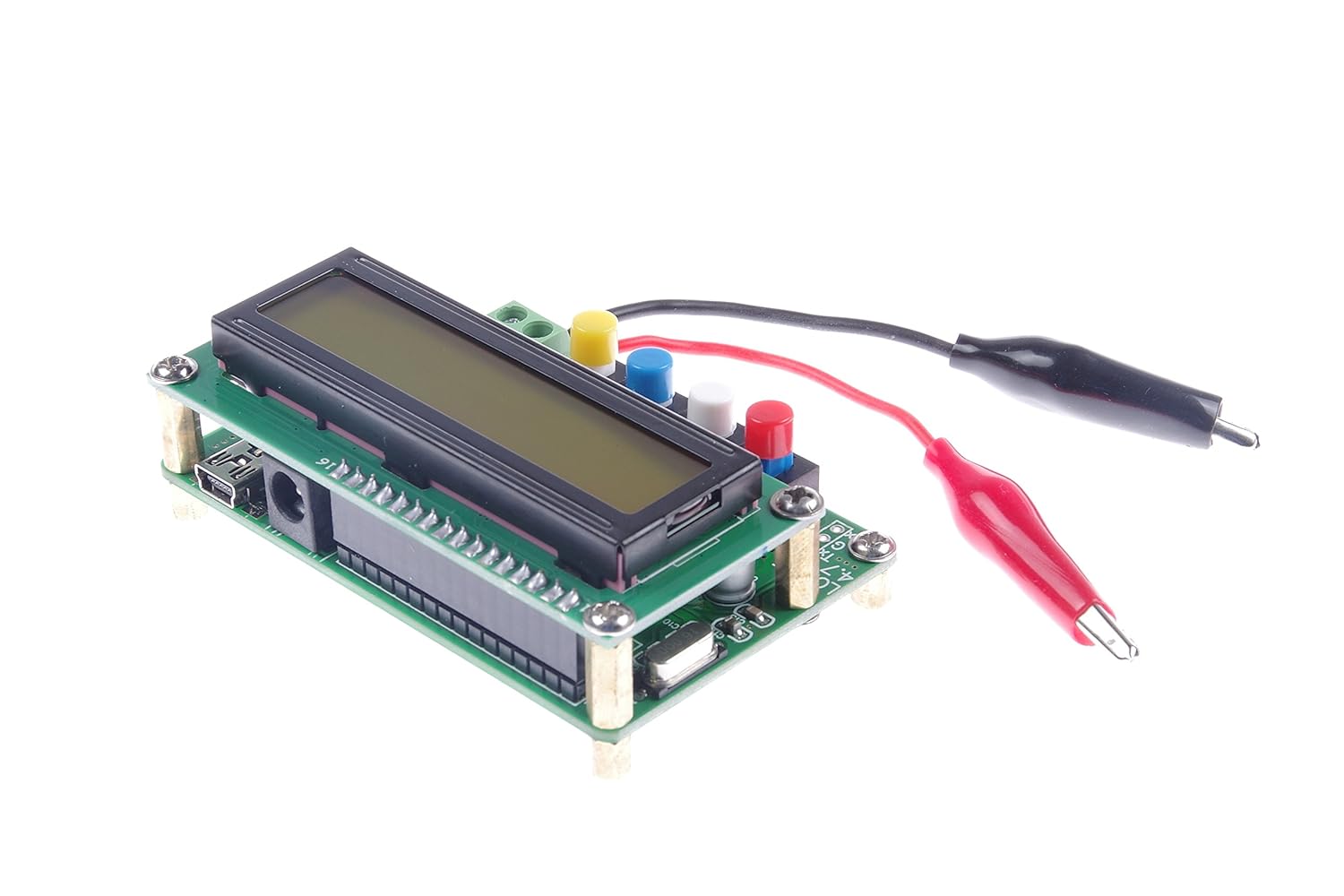

LC100-A LC-100A Digital LCD High Precision Inductance Capacitance L C Meter Accuracy 1%

Based on the L/C resonance principle High speed microcontroller’s precision computation Measuring range below 1uH and1pF Especially qualify in microwave manufacture and measuring switching power supply transformer , filter inductance and soon. LC100-A has four measuring range position: 1.C range........Capacitance(0.01pF-10uF) 2.L range........Inductance(0.001uH-100mH) 3.Hi.L range......Big inductance(0.001mH-100H) 4.Hi.C range......Big capacitance range(1uF-100mF) Technique data： Capacitance Accuracy： 0.01pF-1pF: 5% 1pF-1uF:1% 1uF-10uF: 5% Min Capacitance Resolution（C Files）: 0.01pF Inductance Accuracy: 0.001uH-1uH :5% 1uH-100mH :1% Min Inductance Resolution（L Files）: 0.001uH Big Inductance Accuracy: 100mH-1H 1%; 1H-100H 5%; Min Resolution of Big Inductance （HL Files）:0.001mH Big Capacitance Accuracy :1uF-100mF-5% Min Resolution of Big Capacitance （HC Files）: 0.01uF Frequency: L Files、C Files: Abt.500kHz HL Files: Abt.500Hz Measuring mode:LC Resonance Display mode :1602 LCD Displaydigit : 4 Interface: Mini USB& Φ5.5DC Socket Supply Voltage: 5V Package Included: 1*LC100-A Digital L/C Meter Inductance Capacitance Meter 1*Mini USB Cable 1*LC100-A Users Manual

• Based on the L/C resonance principle
• High speed microcontroller’s precision computation
• Measuring range below 1uH and1pF
• Especially qualify in microwave manufacture and measuring switching power supply transformer , filter inductance and soon.
• Display mode :1602 LCD; Displaydigit : 4; Interface: Mini USB & Φ5.5DC Socket; Supply Voltage: 5V.
