Nema 34 Closed Loop Stepper Motor Kit 8.5Nm/1203.7oz.in 1000 Line Encoder Nema34 86 DC Stepper Motors with 18-80VAC or 18-110VDC DSP Easy Servo Motor Driver for CNC Milling Engraving Machine
$116.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.catwalk-model-training.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$116.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.catwalk-model-training.com
Free 30-day returns Details
Product details
| Management number | 211763769 | Release Date | 2026/04/04 | List Price | $46.80 | Model Number | 211763769 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

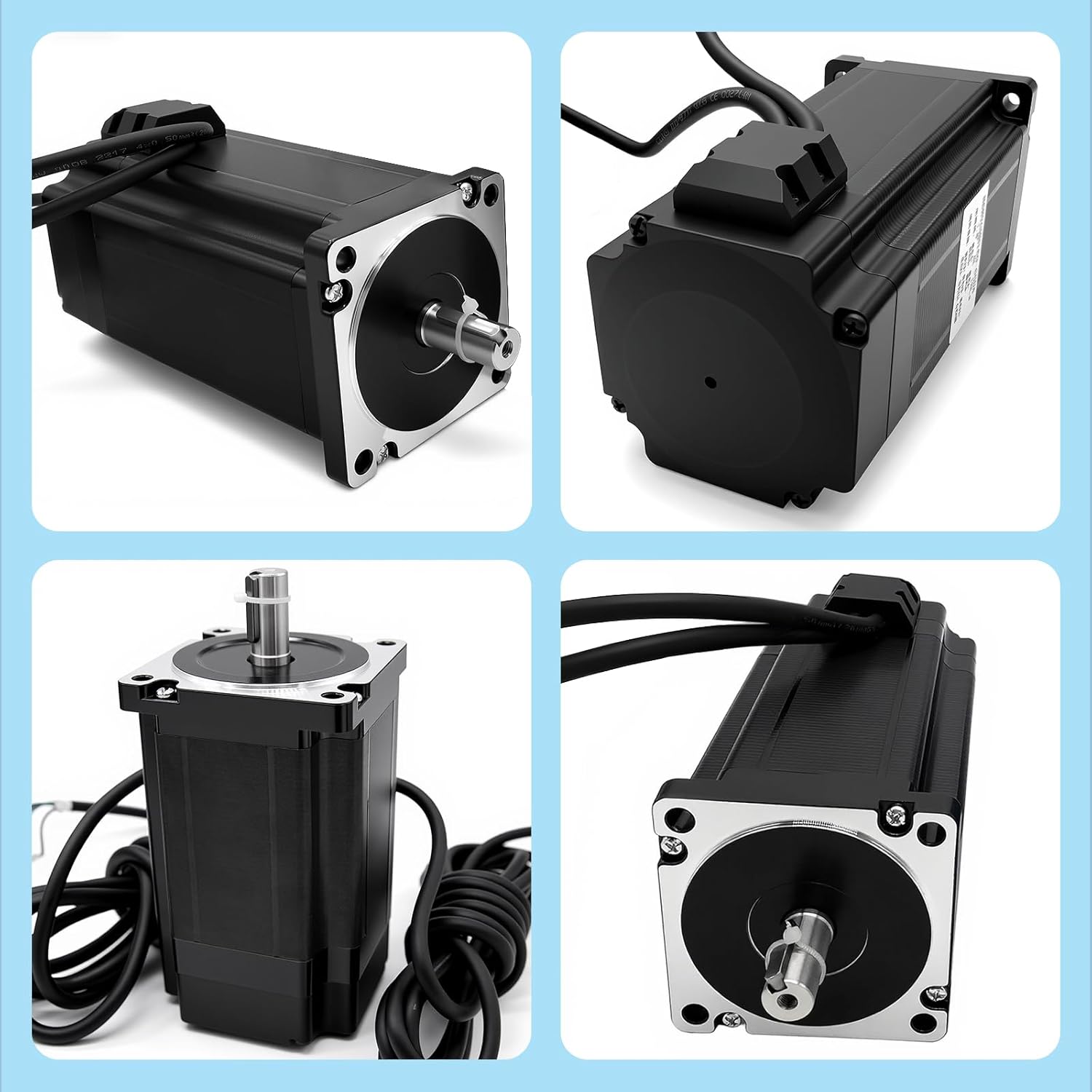

- Items in Kit: 1 x 86HB250-118B: 8.5Nm Closed loop stepper motor, 1 x HBS86H: Nema 34 Closed loop stepper motor driver, 1 x Debugging Cable, 1 x 3m motor and encoder extenstion cables.

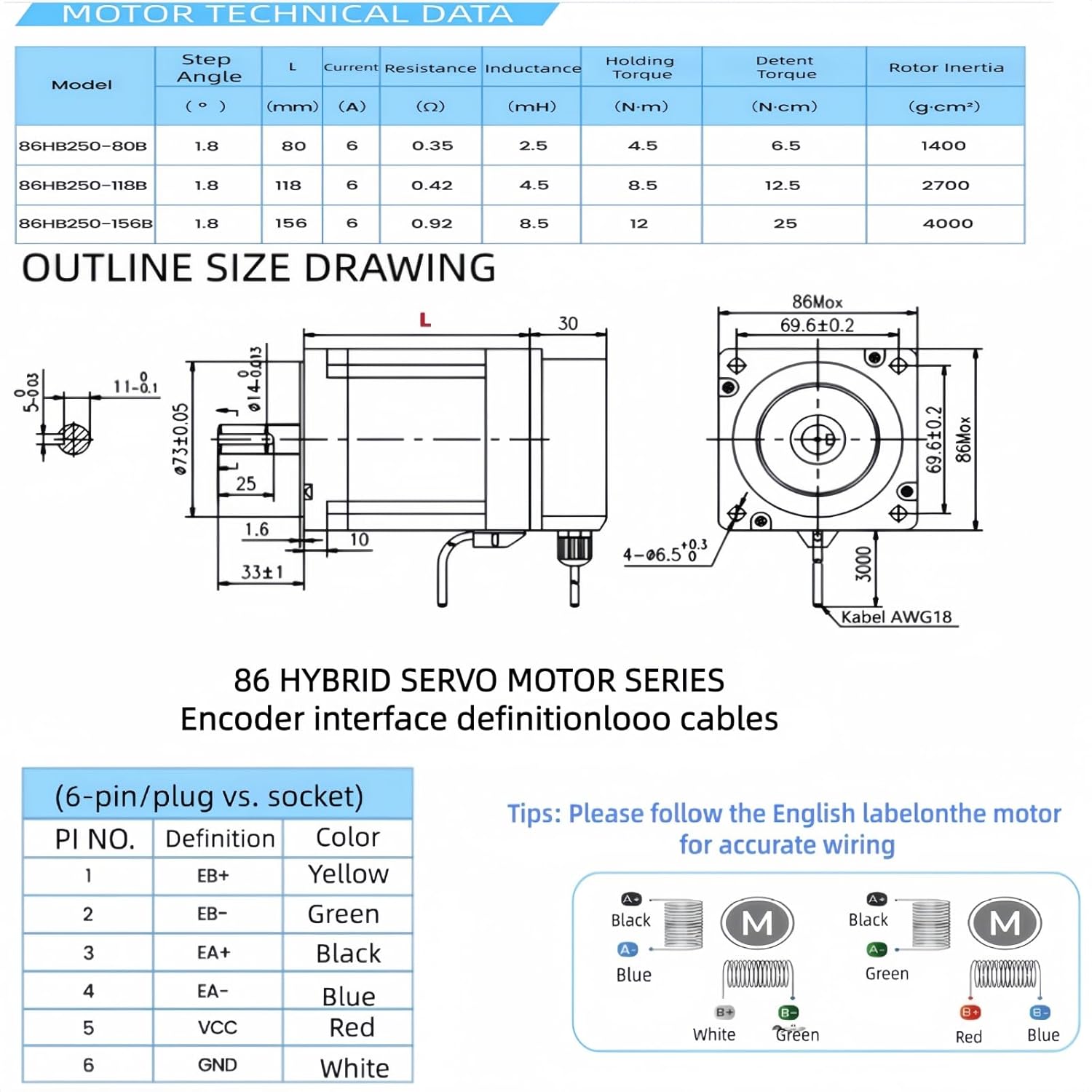

- Size: Holding Torque: 8.5Nm / 850Ncm; 86x86x118mm/3.38*3.38*4.64 inch; Step Angle:1.8 degree; Encoder lines:1000; Current: 4A; Phase: 2; Step Angle: 1.8 degree; Motor Lead Wire: 4-wire; Inductance: 4.5 mH; Resistance: 0.45 (ohm).
- Parameter of Closed Loop Stepper Motor Driver: Type: DSP Closed loop stepper drive; Maximum peak current: 8A; Impulse response frequency: 200KHz; Input Voltage: 20~80 V AC/30-110 V DC; Micro-stepping driver: 200~25200ppr; Compatible : 5~24V signal (Don't need a resistor). Type of cooling: Forced air cooling; Logic Signal Current: 7-16 Ma.
- Advantages: Stepper motor closed loop system,never lose step. The encoder technology can increase the accuracy of the motor; Improve motor output torque and working speed. It supports over-current protection, over-voltage protection, position outside the tolerance protection.
- Widely used: Nema 23 closed loop stepper motor kit can be applied to all kinds small and medium-sized automation equipment and instrument,such as 3D printer, CNC machine, milling machine, carving machine, special industrial sewing machine, stripping machine, marking machine, graph plotter, cnc machine, automatic assembly equipment,automation application and so on.
| Model | 86HB250-118B+HBS86H |
|---|---|
| Speed | 1000 RPM |
| Brand Name | TOSEASTARS |
| Model Name | 86HB250-118B+HBS86H |
| Manufacturer | TOSEASTARS |
| Material Type | Aluminum |
| Included Components | Closed Loop Stepper Motor Kit |
| Item Dimensions W x H | 3.38"W x 4.64"H |
