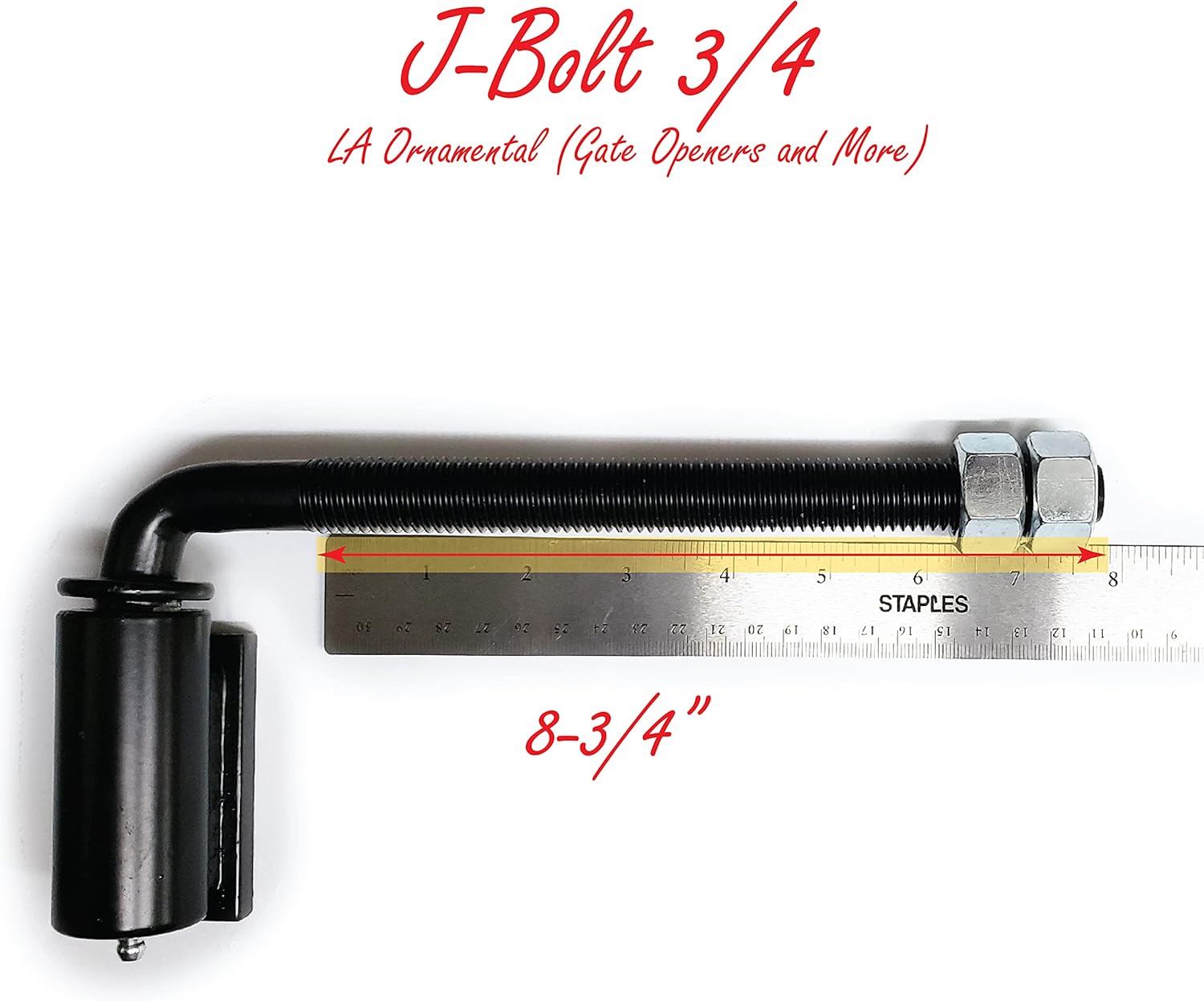

Steel 3/4" J Bolt Welded Hinge Heavy Driveway Gates For Welding on Larger Iron or Steel Gates

The Steel 3/4" J Bolt Welded Hinge Heavy Driveway Gates For Welding on Larger Iron or Steel Gates for Heavy Gate Openers.

• as L.A. Ornamental Store Hinge pivots on a steel ball bearing and includes a grease fitting to keep the bearing lubricated. Steel 3/4" J-Bolt Adjustable Barrel hinges provide full range of swing for gates and doors. The total length of each hinge is 7", with the threaded arm measuring 5.75".
• This hinge will swing a full Circle if installed without a stop. Steel 3/4" J-Bolt Adjustable Barrel hinges provide full range of swing for gates and doors. The total length of each hinge is 7", with the threaded arm measuring 5.75".
• Hinge is made up of a mounting plate which welds to Steel Post (not included) These heavy duty hinges are just what you need to hang doors and gates where you require full range of motion. Made of high quality steel with a black powder coating.
• The J-Bolt arm which attaches to the gate frame and is adjustible. Price is per Pair To Install - Weld the flat backing plate to the mounting post. If not already available, drill a hole through the gate frame big enough for the threaded bolt. Pass the bolt through, and secure with nuts. Hinges must be mounted with the thread arm at the top. If mounted upside down, the gate will fall.
